Location: Main > Optical Mirrors > Broadband Dielectric Mirrors

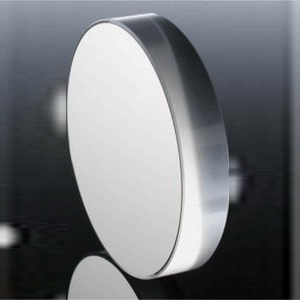

400-900nm Broadband HR Dielectric Mirrors
P/N:PBB-R02 Series
Introduction:PHOTONIK BRAND Broadband Dielectric Mirrors offer excellent reflectivity of R>99% for 400-900nm spectrum.
A dielectric mirror is a type of a mirror composed of multiple thin layers of dielectric material, typically deposited on a substrate of optical material (e.g. glass). By careful choice of the type and thickness of the dielectric layers, we can design an optical coating with specified reflectivity at different wavelengths of light. Dielectric mirrors are also used to produce ultra-high reflectivity mirrors: values of 99.999% or better over a narrow range of wavelengths can be produced using special techniques.
Alternatively, they can be made to reflect a broad spectrum of light, such as the entire visible range or the spectrum of the Ti-sapphire laser. Broadband Dielectric Mirrors of this type are very common in optics experiments, due to improved and advanced techniques that allow inexpensive manufacture of high-quality mirrors. Examples of their applications include laser cavity end mirrors, hot and cold mirrors, thin-film beamsplitters, and the coatings on modern mirrorshades.
P/N Keywords Unit Price Available Generate Quotation
PBB-R02-05 Dia12.7xT6.0mm,BK7,HR@400-900nm,0-45deg AOI S$72.00/pc In stock Add to Request List
PBB20-R02-05 Dia12.7xT6.0mm,BK7,HR@400-900nm,0-45deg,MOQ20pcs S$60.00/pc In stock Add to Request List
PBB-R02-10B Dia25.4xT6.0mm,UVFS,HR@400-900nm,0-45deg,DSP S$105.00/pc In stock Add to Request List
PBB30-R02-10B Dia25.4xT6.0mm,UVFS,HR@400-900nm,DSP,MOQ30pcs S$94.50/pc In stock Add to Request List
PBB-R02-20B-0500-0010 Dia50.0xT1.0mm,BK7,HR@400-900nm,0-45 deg S$150.00/pc In stock Add to Request List
PBB-R02-20B-0500-0200 Dia50.0xT2.0mm,BK7,HR@400-900nm,0-45 deg S$160.00/pc In stock Add to Request List
PBB-R02A-20 Dia50.0xT3.2mm,B270,HR@400-700nm/1064nm,0-45deg S$185.00/pc In stock Add to Request List
PBB-R02G-R0500-0500 Dia50.0xT5.0mm,BK7,HR@500-600nm(45deg),DSP S$150.00/pc In stock Add to Request List
PBB-R02-20A Dia50.8xT4.0mm,UVFS,HR@400-900nm,0-45 deg S$220.00/pc In stock Add to Request List
PBB-R02-20B Dia50.8xT12.0mm,UVFS,SSP,HR@400-900nm,0-45 deg S$280.00/pc In stock Add to Request List
PBB-R02-20B-0120-0050-0040 12.0x5.0xT0.4mm,D263,HR@400-900nm,0-45 deg S$60.00/pc In stock Add to Request List
PBB-R02-20B-0120-0060-0040 12.0x6.0xT0.4mm,D263,HR@400-900nm,0-45 deg S$65.00/pc In stock Add to Request List
PBB-R02-20B-10000880-0100 100.0x88.0xT1.0mm,B270,HR@400-900nm,0-45deg S$420.00/pc In stock Add to Request List
PBB-R02-D-10001000-0040 100x100xT0.4mm,D263,HR@400-900nm,0-45deg S$550.00/pc In stock Add to Request List
PBB-R02-40F-10001000-0100 100.0x100.0xT1.0mm,UVFS,HR@400-900nm,0-45deg S$560.00/pc In stock Add to Request List
PBB-R02-20B-1000-1000-0100 100.0x100.0xT1.0mm,B270,HR@400-900nm,0-45deg S$460.00/pc Call us Add to Request List
PBB-R02-20B-0100-0100-0010 10.0x10.0xT1.0mm,B270,HR@400-900nm,0-45deg,MOQ10 S$100.00/pc In stock Add to Request List
PBB-R02-20B-10001000-0320 100x100xT3.2mm,B270,HR@400-900nm,0-45deg S$460.00/pc In stock Add to Request List


600-900nm Broadband Dielectric HR Mirrors
P/N:PBB-R02B Series
Introduction:PBB-R02B series have high energy laser mirror coating.
- Single side full dielectric coating
- R>99.5% @ 630-1000nm,0-degree
- R>99.5% @ 610-900nm,45-degree
P/N Keywords Unit Price Available Generate Quotation
PBB-R02B-05 Dia12.7xT6.0mm,BK7,600-900nm,R>99.5%,0-45deg S$80.00/pc In stock Add to Request List
PBB-R02B-10A Dia25.4xT3.0mm,BK7,600-900nm,R>99.5%,0-45deg S$110.00/pc In stock Add to Request List
PBB-R02B-10B Dia25.4xT6mm,BK7/DSP,600-900nm,R>99.5%,0-45deg S$115.00/pc In stock Add to Request List
PBB-R02B-20B Dia50.0xT1.0mm,UVFS,600-900nm,R>99.5%,0-45deg S$160.00/pc In stock Add to Request List
PBB-R02B-20A Dia50.8xT12.0mm,BK7,600-900nm,R>99.5%,0-45deg S$280.00/pc In stock Add to Request List
PBB-20B-004500450150W 4.5x4.5xT1.5mm,BK7,600-900nm,R>99.5%,0-45deg,Wedge S$29.00/pc In stock Add to Request List
PBB-20B-007000600150 7.0x6.0xT1.5mm,BK7,600-900nm,R>99.8%,45deg S$21.00/pc In stock Add to Request List
PBB-20B-007000700150 7.0x7.0xT1.5mm,BK7,600-900nm,R>99.8%,45deg S$22.00/pc In stock Add to Request List
PBB-20B-007500630200 7.5x6.3xT2.0mm,BK7,600-900nm,R>99.8%,45deg S$22.00/pc In stock Add to Request List
PBB-S0120005004-20B 12.0x5.0xT0.4mm,BK7,600-900nm,R>99.5%,0-45deg S$50.00/pc In stock Add to Request List
PBB-S0120005004-20B 12.0x6.0xT0.4mm,BK7,600-900nm,R>99.5%,0-45deg S$50.00/pc In stock Add to Request List
PBB-S04000200-0100-02 40x20xT1mm,B270,630-860nm,R>99.5%,0-45deg,MOQ2pcs S$150.00/pc In stock Add to Request List
PBB-R02BQ-10000250-0100 100.0x25.0xT1.0mm,UVFS,600-900nm,R>99.5%,0-45deg S$295.00/pc In stock Add to Request List
PBB-R02BQ-10000500-0100 100.0x50.0xT1.0mm,UVFS,600-900nm,R>99.5%,0-45deg S$330.00/pc In stock Add to Request List
PBB-R02BQ-10000750-0100 100.0x75.0xT1.0mm,UVFS,600-900nm,R>99.5%,0-45deg S$430.00/pc In stock Add to Request List
PBB-R02BD-10001000-0040 100.0x100.0xT0.4mm,D263,600-900nm,R>99.5%,0-45deg S$550.00/pc In stock Add to Request List
PBB-R02B-40F 100.0x100.0xT1.0mm,UVFS,600-900nm,R>99.5%,0-45deg S$580.00/pc In stock Add to Request List


700-900nm Broadband Dielectric Mirrors
P/N:PBB-R03A Series
Introduction:PHOTONIK BRAND Broadband Dielectric Mirrors offer excellent reflectivity of R>99.5% for 700-900nm spectrum.
Dielectric mirrors are often used to produce ultra-high reflectivity mirrors: values of 99.999% or better over a narrow range of wavelengths can be produced using special techniques.
Alternatively, they can be made to reflect a broad spectrum of light, such as the entire visible range or the spectrum of the Ti-sapphire laser. Broadband Dielectric Mirrors of this type are very common in optics experiments, due to improved and advanced techniques that allow inexpensive manufacture of high-quality mirrors. Examples of their applications include laser cavity end mirrors, hot and cold mirrors, thin-film beamsplitters, and the coatings on modern mirrorshades.
P/N Keywords Unit Price Available Generate Quotation
PBB-R03A-05 Dia12.7xT6.0mm,BK7,DSP,HR@700-900nm,0-45deg S$65.00/pc In stock Add to Request List
PBB-R03A-10 Dia25.4xT6.0mm,BK7,DSP,HR@700-900nm,0-45deg S$78.00/pc In stock Add to Request List
PBB-R03A-20 Dia50.8xT6.0mm,BK7,DSP,HR@700-900nm,0~45deg S$150.00/pc Call us Add to Request List


700-1150nm Broadband Dielectric Mirrors
P/N:PBB-R03 Series
Introduction:PHOTONIK BRAND Broadband Dielectric Mirrors offer excellent reflectivity of R>99.5% for 700-1150nm spectrum.
P/N Keywords Unit Price Available Generate Quotation
PBB-R03-0127-0600 Dia12.7xT6.0mm,UVFS,HR700-1150nm,0~45deg S$72.00/pc In stock Add to Request List
PBB100-R03-0127-0600 Dia12.7xT6.0mm,UVFS,HR700-1150nm,0~45deg;MOQ100pcs S$35.00/pc In stock Add to Request List
PBB-R03-0254-0300 Dia25.4xT3.0mm,BK7,HR@700-1150nm,0-45deg S$70.00/pc In stock Add to Request List
PBB-R03-0254-0400 Dia25.4xT4.0mm,UVFS,HR@700-1150nm,0-45deg S$100.00/pc In stock Add to Request List
PBB-R03-0254-0600S Dia25.4xT6.0mm,UVFS,HR700-1150nm,0-45deg,SSP S$105.00/pc In stock Add to Request List
PBB-R03-0254-0600 Dia25.4xT6.0mm,UVFS,HR700-1150nm,0-45deg,DSP S$125.00/pc In stock Add to Request List
PBB-R03-B0508-0100 Dia50.8xT1.0mm,BK7,HR@700-1150nm,0~45 deg S$158.00/pc In stock Add to Request List
PBB-R03-B0508-0200 Dia50.8xT2.0mm,BK7,HR@700-1150nm,0~45deg S$175.00/pc In stock Add to Request List
PBB-R03-F0508-0200 Dia50.8xT2.0mm,UVFS,HR@700-1150nm,0~45-deg S$185.00/pc In stock Add to Request List
PBB-R03-F0508-0400 Dia50.8xT4.0mm,UVFS.HR@700-1150nm,0~45deg S$210.00/pc In stock Add to Request List
PBB-R03-0508-1200 Dia50.8xT12mm,UVFS,HR@700-1150nm, 0 ~45deg S$250.00/pc In stock Add to Request List
PBB-R03-02000200-0300 20.0x20.0xT3.0mm,B270,HR@700-1150nm, 0 to 45-deg S$90.00/pc In stock Add to Request List
PBB-R03-04000200-0300 40.0x20.0xT3.0mm,B270,HR@700-1150nm, 0 to 45-deg S$130.00/pc In stock Add to Request List
PBB-R03-10001000-0300 100.0x100.0xT3.0mm,BK7,HR@700-1150nm,0~ 45deg S$450.00/pc In stock Add to Request List


900-1100nm Broadband Dielectric Mirrors
P/N:PBB-R03B Series
Introduction:PHOTONIK BRAND Broadband Dielectric Mirrors offer excellent reflectivity of R>99.5% for 900-1100nm spectrum.
Dielectric mirrors are often used to produce ultra-high reflectivity mirrors: values of 99.999% or better over a narrow range of wavelengths can be produced using special techniques.
Alternatively, they can be made to reflect a broad spectrum of light, such as the entire visible range or the spectrum of the Ti-sapphire laser. Broadband Dielectric Mirrors of this type are very common in optics experiments, due to improved and advanced techniques that allow inexpensive manufacture of high-quality mirrors. Examples of their applications include laser cavity end mirrors, hot and cold mirrors, thin-film beamsplitters, and the coatings on modern mirrorshades.
P/N Keywords Unit Price Available Generate Quotation
PBB-R03B-10 Dia25.0xT6mm,BK7,HR@900-1100nm,0-45deg AOI S$75.00/pc In stock Add to Request List
PBB-R03B-20 Dia50.0xT6.0mm,BK7,HR@900-1100nm,0-45deg AOI S$150.00/pc In stock Add to Request List


950-1150nm High Reflection Concave Mirrors
P/N:PBB-R03C Series
Introduction:PHOTONIK BRAND Broadband Dielectric Concave Mirrors offer excellent reflectivity of R>99.5% over 900-1100nm with ROC -100mm.
Dielectric mirrors are often used to produce ultra-high reflectivity mirrors: values of 99.999% or better over a narrow range of wavelengths can be produced using special techniques.
Alternatively, they can be made to reflect a broad spectrum of light, such as the entire visible range or the spectrum of the Ti-sapphire laser. Broadband Dielectric Mirrors of this type are very common in optics experiments, due to improved and advanced techniques that allow inexpensive manufacture of high-quality mirrors. Examples of their applications include laser cavity end mirrors, hot and cold mirrors, thin-film beamsplitters, and the coatings on modern mirrorshades.
P/N Keywords Unit Price Available Generate Quotation
PBB-R03C-10-N100 Dia25.4xT3mm,BK7,Concave ROC-100mm,HR950-1150nm S$200.00/pc In stock Add to Request List

[First] [Previous] [Next] [Last]
Goto page 		This is Page 1 of total 1pages
Total 6 types, 10 types/page
