| Location: Main >
Fiber Passive Components > Fiber Adaptors Ferrules > FRU-C-LC-1.25-6.4-B126-10
|
|
|
| Name: | LC Ceramic Ferrule Pack(DIA1.25x6.4mm/Bore 126um) |
| P/N: | FRU-C-LC-1.25-6.4-B126-10 | | Keywords: | LC,Ceramic,Dia1.25x6.4mm/Bore 126um,10pcs/pack |
| Unit Price: |
S$20.00/pc
|
| Available: |
In stock
|
| Request: |
Add to Request List |
| Introduction: | Ø1.25 mm or Ø2.5 mm Stainless Steel or Ceramic Ferrules Available
Various Bore Sizes for Single Mode(SM) or Multimode(MM) Fiber Use
Longer Ferrules Useful for Optogenetics Applications
Customized Ferriles Available per Customer's Drawings. |
|
|
 |
|
Ferrule Type |
Ceramic |
|
Ferrule Material |
Zirconia(zirconium oxide) |
|
Outer Diameter |

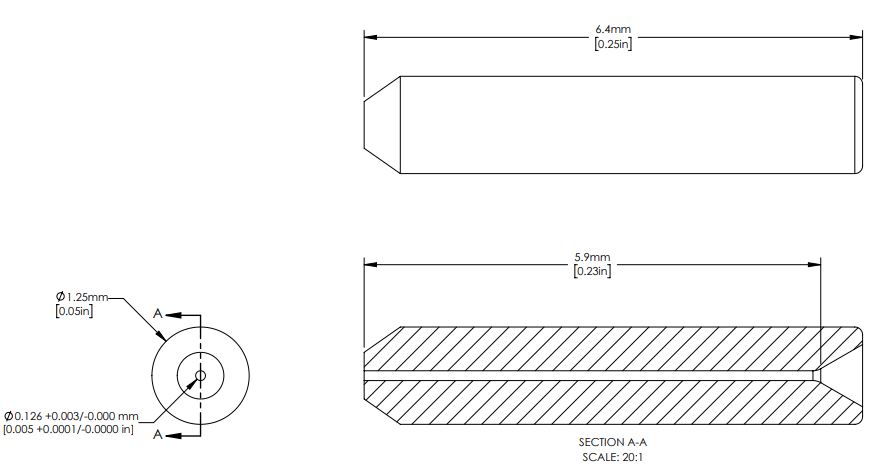

Standard LC ferrule, DIA 1.250mm (1.249,+/-0.0005mm, drawing as shown below) |
|
Length |
6.4mm (drawing as shown below) |
|
Bore Size |
DIA126um (-0/+3um) |
|
Weight* |
0.03g (*WEIGHT SHOWN IS FOR ONE (1) PIECE ONLY) |
|
Operating Temp. |
-20 to +60 deg C |
|
Application |
For single mode fiber use |
|
Packing |
10pcs per pack |
|
Note: |
Unit price for per-pack.
DRAWING SHOWS QUANTITY OF ONE (1) PIECE ONLY PRODUCT IS SOLD IN PACK OF TEN (10) |  |
| |
