Fiber Passive Components > Fiber Polarization Beamsplitters > PBS/C-55-P-2231-2231-2131-H-ER30
|
|
|
| Name: | 1550nm 1x2 PBS SM(FC/APC)-PM(FC/APC) ER30dB |
| P/N: | PBS/C-55-P-2231-2231-2131-H-ER30 | | Keywords: | 1550nm,1x2,1xSM-FC/APC,2xPM-FC/APC,High-Power 1W |
| Unit Price: |
S$1,280.00/pc
|
| Available: |
In stock
|
| Request: |
Add to Request List |
| Introduction: | The Polarization Beam Combiner/Splitter is a compact high
performance lightwave component that combines two
orthogonal polarization signals into one output fiber.
The most common application is to combine the light of
two pump lasers into a single fiber to double the pump
power to an Erbium-Doped Fiber Amplifier (EDFA) or a
Raman Amplifier. The typical configuration uses two PM
fibers for the input and the SM fiber for the output.
The device can also be used as a beam splitter with SM/PM
input fiber, depending on applications. |
|
|
 |
| Operating Wavelength: |
1550nm |
| Bandwidth: |
+/-40nm |
| Configuration: |
1 x 2 |
| Insertion Loss: |
< 0.5dB (with connectors) (Ultra-low loss version) |
| Return Loss: |
> 50dB |
| Extinction Ratio |
at least 30dB (High ER version) |
| Directivity: |
> 50dB |
| Optical Handling Power: |
Up to 1000mW |

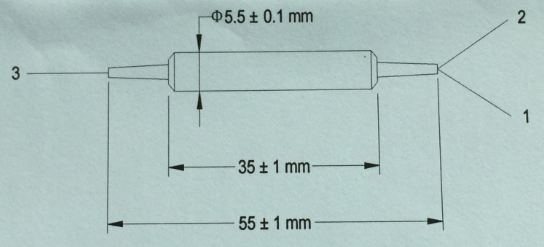

| Packaging Dimension: |
 |
| Fiber Pigtail: |
Port 1 and Port 2:
PM(Panda) Fiber, 900um-tube, 1m-long with FC/APC connectors
Port 3:
SMF-28, 900um-tube, 1m-long with FC/APC connector |
| Tensile Load: |
< 5N |
| Operating Temperature: |
-40 - +85 deg C | |
| |
