Location: Main > Imaging Components > Imaging Alignment Reticle Target > MRT-02500250-0020-11R/R
Name: 25.0x25.0x0.2mm Mylar Reticle Target(11-Circle)
P/N: MRT-02500250-0020-11R/R
Keywords:25x25x0.2mm,Mylar,Concentric/Reticle,Dia1-10/20mm
Unit Price: S$50.00/pc
Available: In stock
Request: Add to Request List
Introduction:
These reticles are idea for imaging and laser targeting applications. They may be used for calibrating resolution, focus, and boresighting, as well as in general spot size, blob, and morphology analysis.



Substrate Material:
Mylar, Polyester; High optical transmission compatible to optical glass
Refractive Index:
1.640-1.670nm (wavelength band of 250-2500nm)
Melting Point:
254 deg C
Thickness:
200um,+/-10um
Out Dimension:
Square 25.0x25.0, +/-0.2mm; Cuttable and shaping to circular disc e.g. DIA25.0mm or less
Pattern Mode:
Single surface patterned; Concentric and symmetric design
Pattern Design:

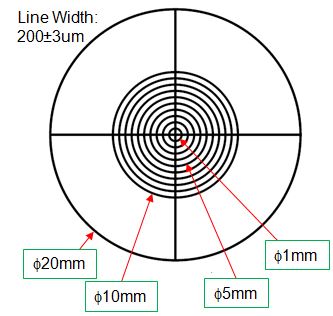

11 concentric circles with cross reticle
Circle 1 ~ 10: center-line diameter =1.000mm ~10.000mm (+/-0.003mm); line thickness: 0.200mm
Circle 11: center-line diameter =20.000mm (+/-0.003mm); linewidth: 0.200mm
Reticle Line:
Cross line, with line width 0.200mm
Pattern Tolerance:
Within +/-3um
Coating:
Emulsion black
Surface Quality:
60-40 scratch and dig (Ra within 38nm scanned by profilometer)
Substrate Unifromity:
within 2um
Surface Protection:
Both surfaces come protection layers; Peel off these 2 layers before use
Application:
Able to directly glue onto glass or metal surfaces(polished or ground) to work as target, per customer's jig dimensions. Low cost and flexible in use.
