Location: Main > Imaging Components > Imaging Alignment Reticle Target > MRT-02500250-0020-160G/R
Name: 25.0x25.0xT0.2mm Reticle Target(Index Grid 10x16)
P/N: MRT-02500250-0020-160G/R
Keywords:25x25x0.2mm,Mylar,Index Grid 10x16,1x1mm/20x20mm
Unit Price: S$50.00/pc
Available: In stock
Request: Add to Request List
Introduction:
These reticles are idea for imaging and laser targeting applications. They may be used for calibrating resolution, focus, and boresighting, as well as in general spot size, blob, and morphology analysis.

Substrate Material:
Mylar, Polyester; High optical transmission compatible to optical glass
Refractive Index:
1.640-1.670nm (wavelength band of 250-2500nm)
Melting Point:
254 deg C
Substrate Thickness:
200um,+/-10um
Out Dimension:
Square 25.0x25.0, +/-0.2mm; Cuttable and shaping to circular disc e.g. DIA25.0mm or less
Pattern Mode:
Single surface patterned; Symmetric design

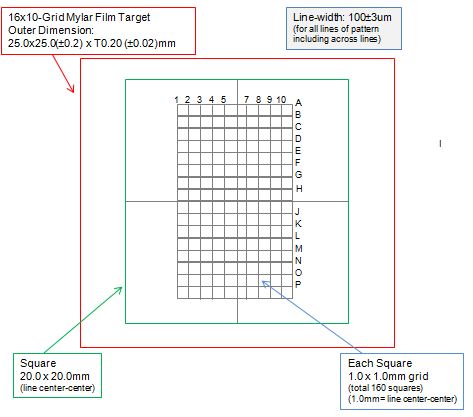

Pattern Design:
10x16 squares(1x1mm index grid) with cross reticle built-in
line thickness: 0.100mm
Max square dimension: 10.000x10.000mm (+/-0.003mm);
Outer reference square dimension: 20.000x20.000mm (+/-0.003mm);
Reticle Line:
Cross line, with line width 0.100mm
Pattern Tolerance:
Within +/-3um
Coating:
Emulsion black
Surface Quality:
60-40 scratch and dig (Ra within 38nm scanned by profilometer)
Substrate Unifromity:
within 2um
Surface Protection:
Both surfaces come protection layers; Peel off these 2 protection layers before use
Application:
Users may directly use this reticle or glue it to glass or metal surfaces(polished or ground) to work as imaging reticle/target, or for laser beam alignment use, to mount per customer's jig dimensions. Low cost and flexible in use.
MOQ:
MOQ = 2pcs; per standard T & C apply.
