Location: Main > Imaging Components > Imaging Alignment Reticle Target > GTR-G1-01600080-0625-CD5
Name: 16.0x8.0xT0.625m Glass Reticle(Positive/CD5um)
P/N: GTR-G1-01600080-0625-CD5
Keywords:16.0x8.0xT0.625m,Soda lime,Reticle,Positive,5.0um
Unit Price: S$125.00/pc
Available: Call us
Request: Add to Request List
Introduction:
These reticles made of optical glass substrates, are idea for imaging or laser targeting applications. They may be used for calibrating resolution, focus, and boresighting, as well as in general spot size, blob, and morphology analysis.

This is positive type with full backrgound in clear(for high transmission).Both surfaces can be anti-reflection(AR) coated per request.
Substrate Material:
Soda-lime glass, laser optical grade
Thickness:
0.625mm,+/-0.025um
Outer Dimension:
Retangular 16.0x8.0, -0.1/0mm; May DIY cut to smaller size.shape per request.
Pattern Mode:
Single surface patterned; Full surface with chrome patterns covered(typ slightly blue color)
Optical density(OD) >3.0 @ 450nm
Pattern Design:
Grid, 2000x2000um square/grid lines with width of 5.0um +/-0.5um; Positive pattern effect
Square Dimension:
2,000x2,000um square, tolerance within +/-0.5um
Dot Pitch Size/Spacing:
NA

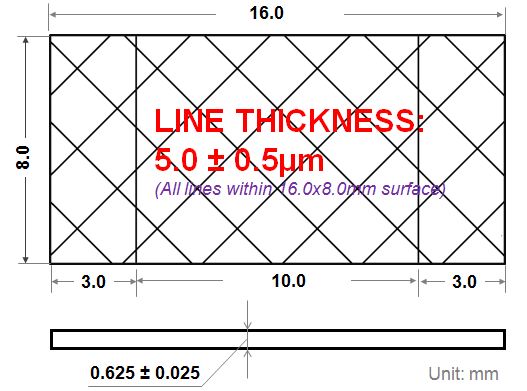

Pattern Coverage
As shown below with 50um border/margin
Coating:
Uncoated on both surfaces typ (May process custom AR coating at speficific wavelength or range)
Surface Quality:
20-10 scratch and dig, <lambda/4@633nm
Substrate Parallelism:
within 30 arc seconds
Surface Protection:
Both surfaces come protection layers; Peel off these 2 protection layers before use
MOQ:
MOQ 50pcs(minimum order quantity)
