Location: Main > Optical Beamsplitters > Non Polarization Beamsplitter Cube > NPBSC-C-12.7-BR
Name: 12.7mm HR405-450nm/HT630-700nm Beamsplitter Cube
P/N: NPBSC-C-12.7-BR
Keywords:12.7x12.7x12.7mm,BK7,HR@Blue/HT@Red;Dichroic Cube
Unit Price: S$255.00/pc
Available: In stock
Request: Add to Request List
Introduction:

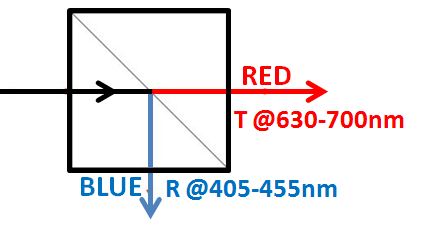

The inner hypotenuse surface of these cubes has HR coating at 405-450nm, while all the outer surfaces come with AR coating at 400-700nm. So these cubes will allow 630-700nm light pass but reflect 405-450nm on the inner hypotenuse surface.This cube can work as dichroic beamsplitter/color separation or color combiner cube applications.

Material:
BK7 Optical Glass
Dimension:
12.7x12.7x12.7,-0.2/+0.0mm
Surface Quality:
40/20 Scratch and Dig
Flatness:
Lambda/10 over 90% on all optical surfaces at 633nm
Max. Transmitted Beam Deviation:
<5 arc minutes
Reflected Beam Deviation:
90 deg +/-5 arc min
Coating:
All 4 input/out surfaces AR coating @ 400-700nm
Hypotenuse surface with dichroic coating:
HR @ 405-450nm, R>99% (45-deg)
HT @ 630-700nm, T>94% (45-deg)
Clear Aperture: >85% of outer surfaces
