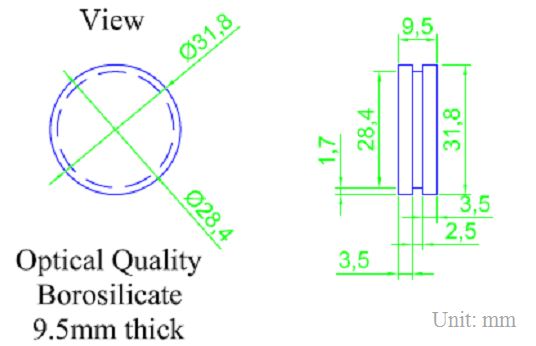

| Name: | DIA31.8xT9.5mm BK7 Glass Window(U-grooved) |
| P/N: | BK7S-C-R-0318-0950-G | | Keywords: | Dia31.8xT9.5mm,BK7,DSP,with U-grooved edge surface |
| Unit Price: |
S$145.00/pc
|
| Available: |
In stock
|
| Request: |
Add to Request List |
| Introduction: | BK7S BK7 Optical Glass
C 40-20 Scratch and Dig (Double Side Typ.)
R Round Shape |
|
|
 |
| Substrate Material: |
BK7 Optical Glass |
| Outer Diameter: |
31.8,+/-0.1mm |
| Thickness: |
9.5,+/-0.1mm |
| Surface Quality: |
Double side polished (40-20 scratch and dig, MIL Standard) |
| Flatness: |
< Lambda/10 @ 632.8nm over 25mm area on-jig tested |
| Parallelism: |
<3 arc minutes |
| Edge Surface: |
With U-grooved (width = 2.5mm); Ground surface, with 0.3mmx45deg protection chamfer | |
| |
