Location: Main > Optical Mirrors > Au Ag Al Cu Coating Mirrors > MCM-UVAL-S-01000100-0100B

Name:	100x100xT1.0mm UV Enhanced Aluminum Mirror(B270)
P/N:	MCM-UVAL-S-01000100-0100B
Keywords:	100x100xT1.0mm,B270,UVE Al,40-20 S/D,DSP,lambda/4
Unit Price:	S$260.00/pc
Available:	Call us
Request:	Add to Request List
Introduction:	PHOTONIK's UV-enhanced(UVE) coating is made by using an overcoat of MgF2 on Aluminum coating, which allows >85% reflection from 250 to 1000 nm. UV Enhanced Aluminum Mirrors are good for UV, Visible, IR reflection applications. This is used for UV-band cared optical system as a full-spectrum front surface mirror. Smaller dimensions available(if only within 100x100mm)

Substrate Material:	B270 glass
Outer Dimension:	100.0x100.0,-0.2/+0.0mm
Thickness:	1.0,+/-0.1mm
Surface Quality:	Fine polished; 40-20 scratch and dig
Flatness:	<lambda/4@633nm per 25mm
Chamfer:	<0.2mmx45deg
Coating:	Front surface: Aluminum+MgF2 UVE coated

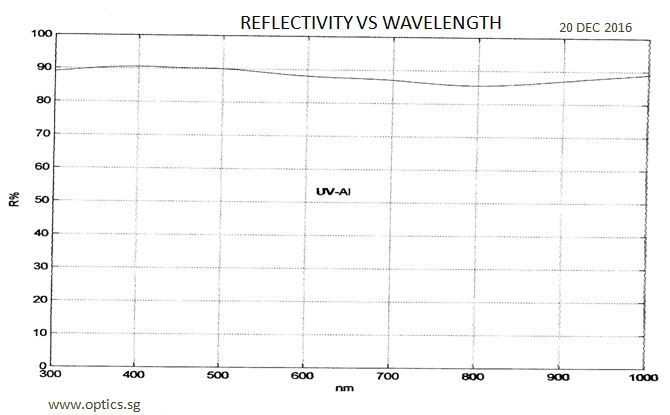

Reflectivity:	R>75% @ 200nm; R >85% @250 - 1000nm
Clear Aperture:	>90% of reflective surface
Packing:	Vacuum packaged
