| Location: Main >
Optical Mirrors > Au Ag Al Cu Coating Mirrors > MCM-AL-00510051-0100
|
|
|

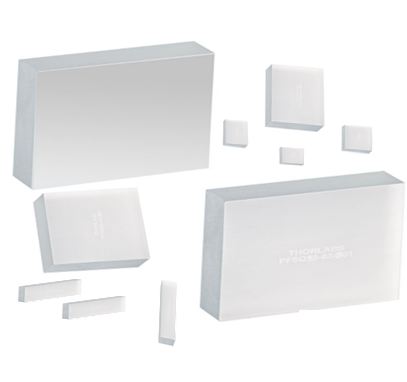

| Name: | 5.1x5.1xT1.0mm First Surface Aluminum Mirror |
| P/N: | MCM-AL-00510051-0100 | | Keywords: | 5.1x5.1xT1.0mm,P-Al coated,DSP,40-20 S/D,MOQ4pcs |
| Unit Price: |
S$25.00/pc
|
| Available: |
In stock
|
| Request: |
Add to Request List |
| Introduction: | First Surface Mirror/Front Surface Mirror with protected aluminum coating is the best choice for general broadband use. And SiO coating is used to protect the delicate aluminum coating, making it suitable for laboratory and industrial use. The protected aluminum coating gives a reflectivity that most closely matches the reflection of a bare aluminum coating. |
|
|
 |
|
Substrate Material: |
BK7 glass |
|
Outer Dimension: |
5.1x5.1,+/-0.1mm |
|
Thickness: |
1.0,+/-0.1mm |
|
Surface Quality: |
Double side fine polished; 40-20 S/D scratch and dig(coated) |
|
Flatness: |
< Lambda/4 @ 633nm every 1" area; Imaging grade |
|
Coating: |
Front Surface: Single side Aluminum coating, protective SiO overcoat
Back Surface: Fine polished |
|
Reflectivity: |
Ravg>90% from 400nm-10um
Ravg>85% from 250nm-600nm; |
|
Clear Aperture: |
>90% of outer dimension |
|
Packaging: |
Vacuum packed |
| MOQ: |
MOQ 4pcs (minimum order quantity) |
|
Application: |
Front surface/first surface mirror use | |
| |
