| Location: Main >
Optical Mirrors > Cavity Input Pump Mirrors > CIM-808B-1064-15-3-FLAT
|
|
|
| Name: | DIA15.0xT3.0mm HT808/HR1064nm Cavity Mirror(45deg) |
| P/N: | CIM-808B-1064-15-3-FLAT | | Keywords: | Dia15xT3.0mm,BK7,plano/plano,HT808/HR1064nm,45deg |
| Unit Price: |
S$190.00/pc
|
| Available: |
In stock
|
| Request: |
Add to Request List |
| Introduction: | These input laser cavity mirrors (input pump mirrors) allow 808nm laser light with 45-deg angle of incidence to go into the laser cavity and reflect 1064nm laser light in the laser cavity.
S2: Flat
AR @ 808nm (R<0.25%)
S1: Flat
HR @ 1064nm (R>99.5%), HT @ 808nm (T>98%) |
|
|
 |
| Substrate Material: |
BK7 optical glass |
| Surface Flatness: |
<lambda /10 at 633nm over clear aperture |
| Surface Quality: |
20-10 scratch and dig |
| Outer Diameter: |
15.0,+0.0/-0.1mm |
| Thickness: |
3.0,+/-0.1mm |
| Wedge/Parallelism: |
<1 arc minute |
| Chamfer: |
0.2mm at 45-deg typ |
| Concentricity: |
NA |
| Coating Technology: |
Electron beam multilayer dielectric |
| Clear Aperture: |
Exceeds central 90% of dimension/polished surface |
| Damage Threshold: |
1MW/cm2 CW, 5J/cm2 (10ns pulse) |
| Surface Radius Type: |
S2: Flat (plano design)
S1: Flat (plano design) |
| Coating (45-deg AOI): |
S2(plano): AR @ 808nm (R<0.25%), 45-deg

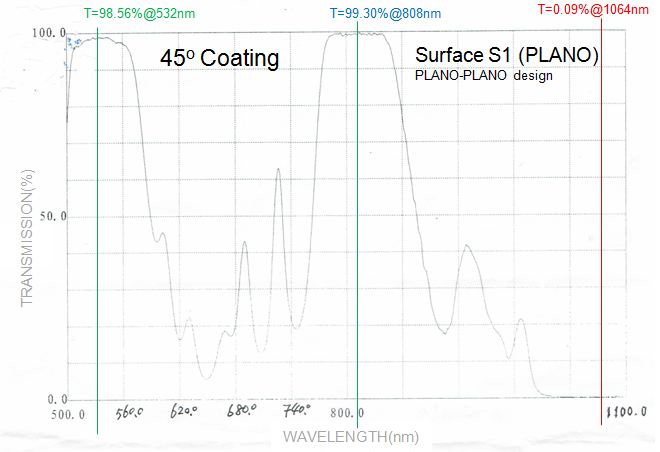

S1(plano): HR @ 1064nm (R>99.5%), HT @ 808nm (T>98%), 45-deg | |
| |
