| Location: Main >
Optical Mirrors > Dichroic Mirrors Filters > DCM-D-R-0127-0060
|
|
|
| Name: | DIA12.7xT6mm HR400-980nm/HT1030-1200nm Flat Mirror |
| P/N: | DCM-D-R-0127-0060 | | Keywords: | Dia12.7xT6.0mm,UVFS,HR400-980nm/HT1030-1200nm,Flat |
| Unit Price: |
S$280.00/pc
|
| Available: |
In stock
|
| Request: |
Add to Request List |

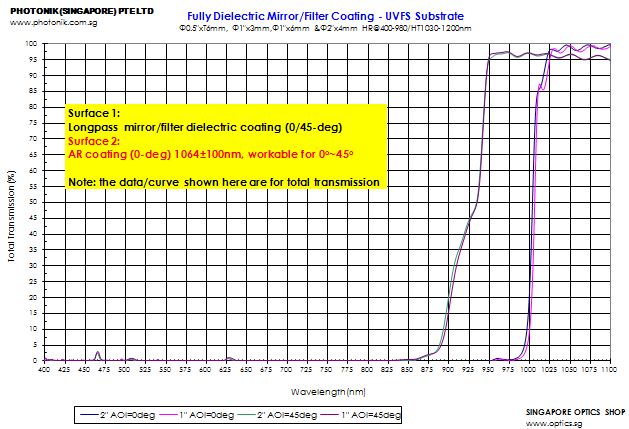

| Introduction: | At 0-deg AOI,
HR @400-980nm,R>99.5%
HT @1030-1200nm,T>95%.(AR @1064+/-30nm,T>98%)
Slope from 980-1030nm |
|
|
 |
| Substrate Material |
Corning 7980 UVFS |
| Outer Diameter: |
12.7,-0.2/+0.0mm |
| Configuration: |
Plano-plano |
| Clear Aperture: |
>90% of polished surface |
| Thickness: |
6.0,+/-0.1mm |
| Surface Quality |
40-20 scratch and dig;<Lambda/10 @633nm over clear aperture |
| Parallelism: |
<1 arc minute |
| Coating on Front Surface |
HR @ 400-980nm(R>99.5%),0-deg AOI design
HT @1030-1200nm,T>95%,0-deg AOI design;(T>98% @ 1064+/-30nm, 0-deg AOI) |
| Coating on Back Surface |
AR @ 1064nm(R<0.2%),0~45 deg AOI design |
| Chamfer: |
0.25mm x 45deg protection | |
| |
