Location: Main > Optical Prisms > NonStandard Prism Mirrors > PQM-PEAL-02500250-023-440
Name: 25.0x25.0xT2.3mm Prism Quad Mirror(44-deg Wedged)
P/N: PQM-PEAL-02500250-023-440
Keywords:25.0x25.0xT2.3m,BK7,E-Al coating,44-deg wedge
Unit Price: S$180.00/pc
Available: In stock
Request: Add to Request List
Introduction:
Optical prism design
Coated on wedged surfaces
Protected Aluminum or Silver coating available

Substrate Material:
BK7 glass
Outer Dimension:
X=25.0mm; Y=25.0mm, tolerance: +/-0.1mm
Thickness:
2.30,+/-0.05mm
Wedged Angle:
44-deg, with tolerance +/-0.2 degree
Surface Quality:
Optical surface: Y-direction wedged surface; polished, 40-20 S/D; Protected enhanced Aluminum coated, better than 60-40 S/D
Other surfaces: ground only
Flatness:

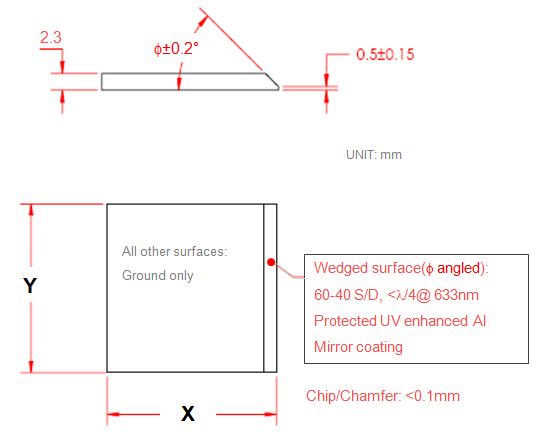

<Lambda/4@ 632.8nm over surface (Y-direction wedged surface as shown below)
Parallelism:
<3 arc min(between XY surfaces)
Wedge Chamfer:
0.5 +/-0.15mm
Chip:
<0.1mm
