Location: Main > Optical Prisms > NonStandard Prism Mirrors > SCPM-PAG-01000150-034-190
Name: 10.0x15.0xT3.4mm Side Prism Mirror(19.0 deg)
P/N: SCPM-PAG-01000150-034-190
Keywords:10.0x15.0xT3.4m,BK7,P-Ag coating,19.0 deg wedge
Unit Price: S$60.00/pc
Available: In stock
Request: Add to Request List
Introduction:
Side and center prism mirrors
Right-angle prism design;
Coating on hypeteous surface only (protected aluminum or silver coated)
For imaging sytem integration

Substrate Material:
BK7 glass
Outer Dimension:
X=10.0mm; Y=15.0mm; Height: 3.4mm; tolerance: +/-0.1mm
Prism Design:
Right-angle, 90 degrees (+/-30 arc minutes)
Wedged Angle:
19.0 degrees, with tolerance +/-5 arc minutes
Surface Quality:
Optical surface(A): hypeteous/wedged surface ONLY; polished, 40-20 S/D; Protected silver coated, better than 60-40 S/D
Other surfaces: ground only
Flatness:

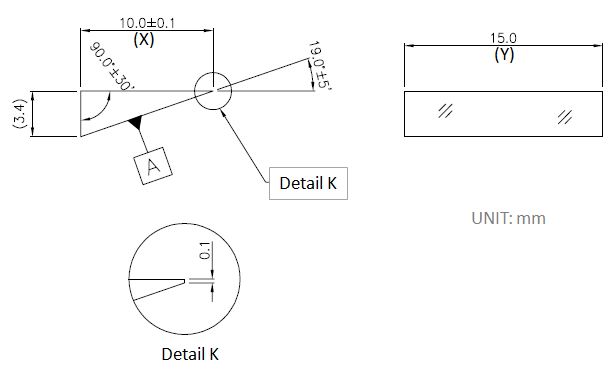

<Lambda/4@ 632.8nm over surface (wedged surface as shown below)
Wedge Chamfer:
0.10 +/-0.05mm sharp
Chip:
<0.1mm
