Location: Main > Optical Prisms > NonStandard Prism Mirrors > PQM-PEAL-01500300-070-440

Name:	15.0x30.0xT7.0mm Prism Quad Mirror(44-deg Wedged)
P/N:	PQM-PEAL-01500300-070-440
Keywords:	15.0x30.0xT7.0mm,BK7,E-Al coating,44-deg wedge
Unit Price:	S$169.00/pc
Available:	In stock
Request:	Add to Request List
Introduction:	Optical prism design Coated on wedged surfaces Protected Aluminum or Silver coating available

Substrate Material:	BK7 glass
Outer Dimension:	X=15.0mm; Y=30.0mm, tolerance: +/-0.1mm
Thickness:	7.00,+/-0.05mm
Wedged Angle:	44-deg, with tolerance +/-0.1 degree
Surface Quality:	Optical surface: Y-direction wedged surface A; polished, 40-20 S/D; Protected enhanced Aluminum coated; Top surface: 15.0x30.0mm surface clear-polished 80-50 S/D for mounting use Other surfaces: ground only

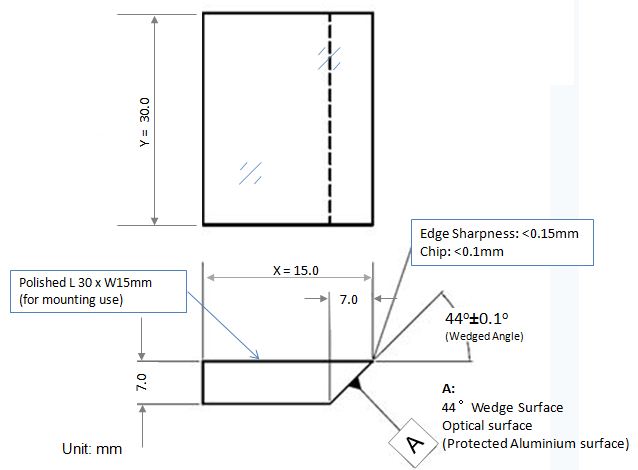

Flatness:	<Lambda/4@ 632.8nm over surface A (Y-direction wedged surface as shown below)
Parallelism:	<3 arc min(between 2 XY-direction surfaces)
Wedge Chamfer:	<0.15mm
Chip:	<0.1mm
