| Name: | DIA69.0xT3.0mm Quartz Glass Holder(5mm Perforated) |
| P/N: | QSW-R0690-0300-61D5.0 | | Keywords: | Dia69.0xT3.0mm,Quartz,Hole5mm,61 positions/4-ring |
| Unit Price: |
S$755.00/pc
|
| Available: |
In stock
|
| Request: |
Add to Request List |
| Introduction: | Quartz Shadow Windows can be used for numerous applications like UV, Visible, or IR Windows in front and Photo-detectors.Synthetic quartz substrates are used for best thermal stability. It can be customized upon request (per customer drawings). Special anti-reflection(AR) coating can be done on aperture area per individial design. |
|
|
 |
|
Substrate: |
Synthetic Quartz,200~2500nm |
|
Outer Diameter: |
DIA 69,-0.2/+0.0mm |
|
Thickness: |
3.0,+/-0.1mm |
|
Metal Plating: |
NA |
|
Mask Tolerance: |
+/-0.1mm type |
|
Pattern Structure: |

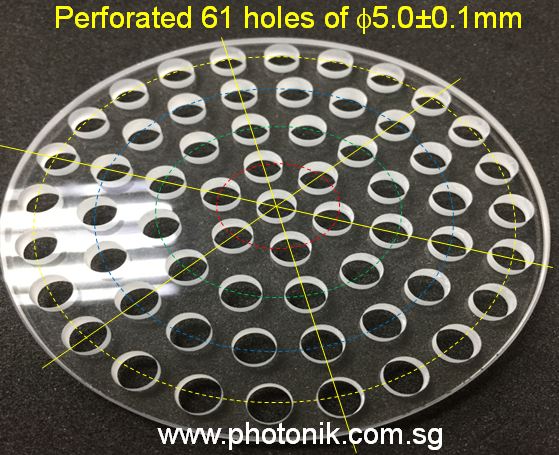

Hole-thru/hollow "window" of diameter 5.0 +/-0.1mm over whole disc, uniformly distributed with four(4) concentric rings; Total: 61 holes positioned as illustrated below |
|
Central Area: |
Hole of diameter 5.0 +/-0.1mm centered |
|
Surface Quality: |
60-40 S/D |
|
Surface Coating: |
Uncoated |
|
Protection Chamfer |
0.35mm x 45deg on ground edge surface |  |
| |
