Location: Main > Optomechanics > Adaptors Tubes Mounts Rings Plates > ADSM1F5-D30F-D38.1M-T11SS

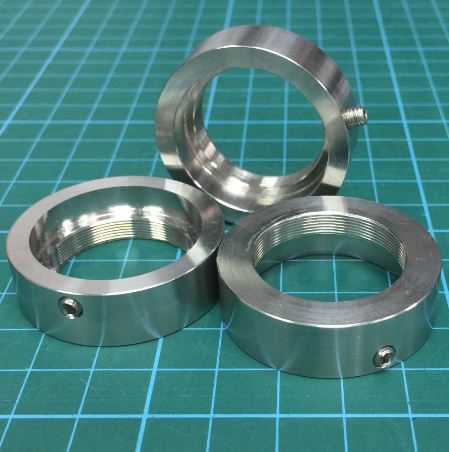

Name: SM1(F)-D30(F) D38.1(M) Adaptor(SS304) T11mm
P/N: ADSM1F5-D30F-D38.1M-T11SS
Keywords:SM1(female),T11mm,D30(F)/D38.1(M),M4 locker,SS304
Unit Price: S$125.00/pc
Available: In stock
Request: Add to Request List
Introduction:
SM1(female) adaptors to other circular parts of diameter 30mm & 38.1mm

Material: Stainless steel 304
Configuration/Application:

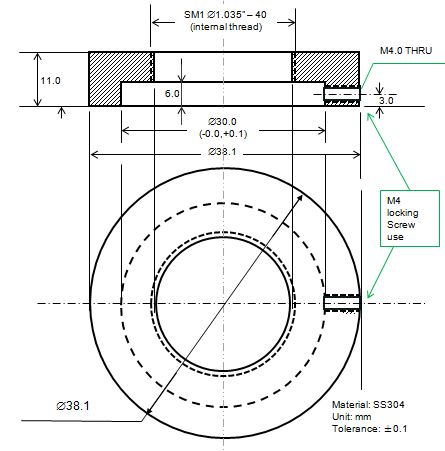

Adating for SM1 male(1-inch 40-TPI) to other mounts of inner diameter of D38.1mm or outer diameter of D30mm

Outer Diameter(OD): 38.1, +/-0.1mm (male head)
Mount thickness: total 11.0, +/-0.1mm
SM1 thread depth: Female, 5.0 +/-0.1mm
Clear Aperture: Diameter 22.0mm minimum after SM1 retaining ring mounted
Retaining Rings: SM1 (1-inch, 40-TPI, 2mm thick), 2pcs included)
Inner Housing: diameter 30.0(-0/+0.1)mm, depth 6.0+/-0.1mm
Surface Finish: All surfaces original SS304
Locking Screw: M4, SS304,1-position for locking D30mm parts built-in
