Location: Main > Optomechanics > Frictionless Tables Slides with Linear Bearings > CRWU-30-55
Name: L55xW30xH17mm Cross Roller Way Unit(32mm-Stroke)
P/N: CRWU-30-55
Keywords:L55xW30xH17mm,Cross roller,32mm-stroke,M2
Unit Price: S$450.00/pc
Available: In stock
Request: Add to Request List
Introduction:

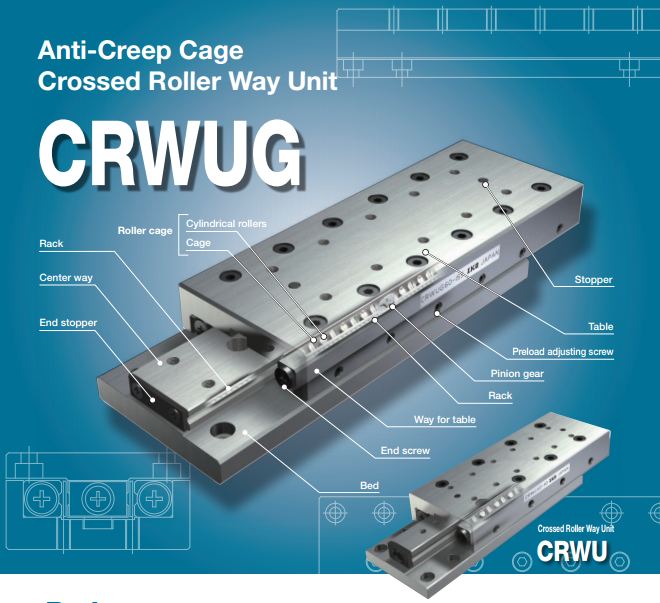

This cross roller Table is a compact, high-precision, high-rigidity, limited linear guide unit with built-in cross roller guide. Easily installed with bolts, this product provides a high accuracy linear guiding mechanism.
Single-axis movement version
Table top and bottom are steel based, blacked processed
Length from 25mm to 285mm available
Strokes from 12-185mm available

Product Origin/Brand: IKO, Japan
Original P/N: CRWU 30-55 IKO crossed roller way unit
Top/Bottom Material:
High carbon steel
Total Way Length:
55.0 +/-0.2mm
Way Width:
30.0,+/-0.2mm
Thickness/Height:
17.0,+/-0.2mm
Stroke(Travel):
32.0mm (max); or +/-16mm
Surface Mounting:
Top face: Metric M2, 8 positions(10mm spacing)
Bottom face: M2 clearance holes, 8 positions (22mm/10mm spacing); 48/28mm spacing)
 Accuracy: Vertical: within 2um; Horizontal: within 3um
 Weight: 190g
Drawing: email us sales@optics.sg for detailed drawing
